Quality Control

QA / QC Process Flow

CSYE

CSYM

Stage

Check Material grade

XRF Analyzer

Incoming
Inspection

Check Dimension

Measurement Tape / Caliper

Check Material Flatness

Flat ruler and Feeler Gauge

Measurement of the physical geometrical characteristics

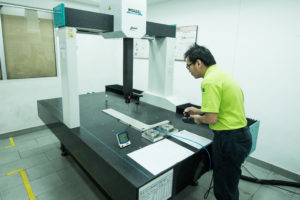

Coordinate Measuring Machine (CMM)

Inprocess
Inspection

Check Critical Hole Diameter and Roundness

Hole Tester

Measurement of dimension for flat sheets after laser / punching process

VQC

Check limit fits and tolerance

GO / NO GO gauges

Direct contact measurements for dimensions inspection.

Calipers, measurement tape, thread gauges.

Precise 2D measurement (One Touch)

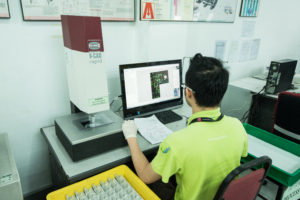

V-CAD-2D optical measuring device.

Visual Inspection for appearance check.

Visual inspection against standard established.

Outgoing
Inspection

Precise 2D measurement (One Touch)

Keyence Image Dimension Measurement System (IDMS ) with 300 X 200mm Stage

Dimension check base on sampling plan

3D Inspection, Dimensional Analysis and Reverse Engineering

7 Axis FARO Arm (9 Fts, 2.7m)

CSYE

Stage

Incoming
Inspection

Check Material grade
XRF Analyzer

Check Dimension
Measurement Tape / Caliper

Check Material Flatness
Flat ruler and Feeler Gauge

Inprocess
Inspection

Measurement of the physical geometrical characteristics
Coordinate Measuring Machine (CMM)

Check Critical Hole Diameter and Roundness
Hole Tester

Check limit fits and tolerance
GO / NO GO gauges

Outgoing
Inspection

Precise 2D measurement (One Touch)
V-CAD-2D optical measuring device.

Precise 2D measurement (One Touch)

Keyence Image Dimension Measurement System (IDMS )
with 300 X 200mm Stage

3D Inspection, Dimensional Analysis and Reverse Engineering
7 Axis FARO Arm (9 Fts, 2.7m)

CSYM

Stage

Incoming
Inspection

Check Material grade
XRF Analyzer

Check Dimension
Measurement Tape / Caliper

Check Material Flatness
Flat ruler and Feeler Gauge

Inprocess
Inspection

Measurement of the physical geometrical characteristics
Coordinate Measuring Machine (CMM)

Measurement of dimension for flat sheets after laser / punching process
VQC

Direct contact measurements for dimensions inspection.
Calipers, measurement tape, thread gauges.

Outgoing
Inspection

Visual Inspection for appearance check.
Visual inspection against standard established.

Dimension check base on sampling plan
